HANS Pro Ultra Lite 20L SFI Device - Quick Click, M6

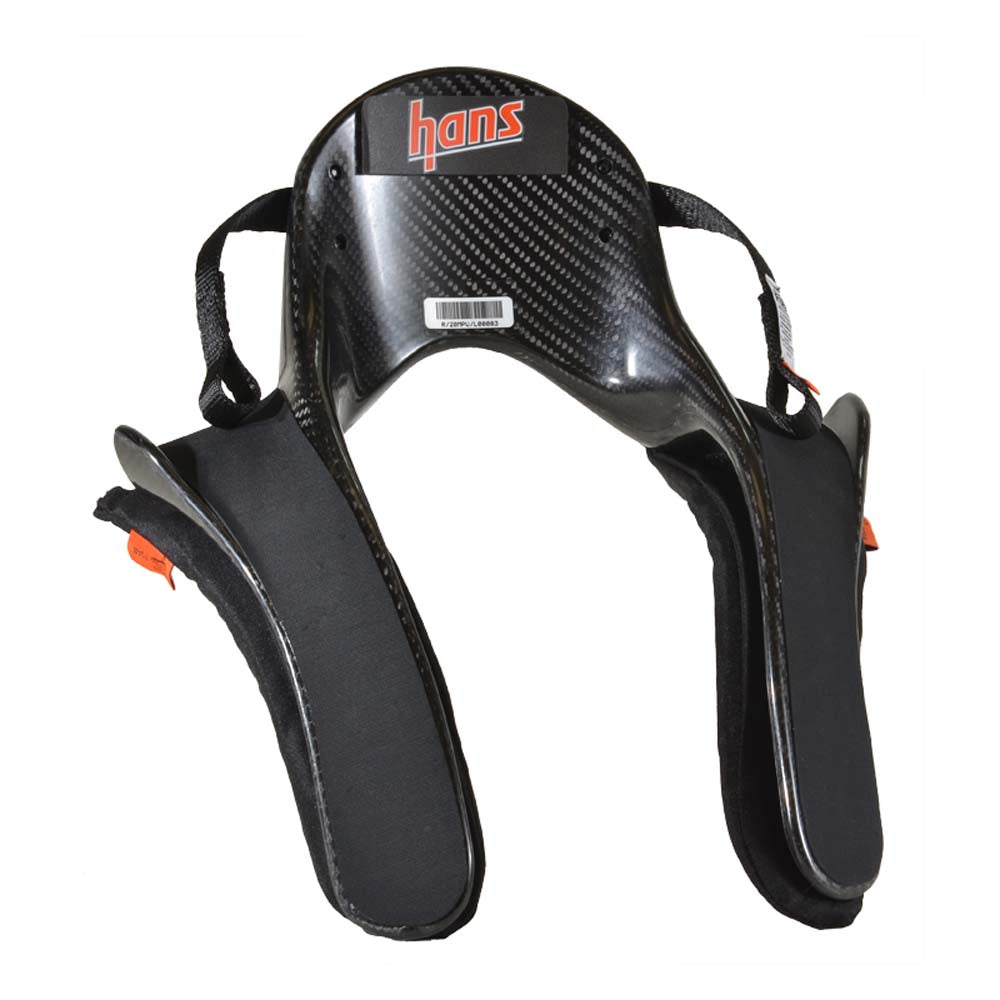

With a 100% carbon-fiber, hollow core construction, the Hans Pro Ultra Lite Device offers a 100 gram weight savings over the already super-lightweight Hans Ultra. SFI 38.1 approved, the Pro Ultra Lite is constructed from the latest aerospace grade carbon-fiber and weighs in at under a pound. Quick Click anchors allow for quick removal of the device for easier entry and exit in even the smallest, tightest race cars. The Sliding-style tether is standard for great visibility (with no loss of protection).
| Rating: | SFI 38.1 |
| Part Number: | HADK14236-41-SFI, HADK14246-41-SFI |
- SFI certified with Quick-Click style anchors.
- Ultra lightweight Carbon Fiber, hollow-core construction
- Easy vehicle entry/exit, even in smaller vehicles
- M6 style anchor installs directly to SA2015 and later helmets.
- Note: Medium device with padding removed weighs 0.97 lbs. The Hans Pro Ultra is currently only available with a 20-degree layback, in size Medium or Large.
Most modern Snell SA2015 and later and/or FIA8858/FIA8860/FIA8859 helmets have threaded mounting posts bonded into the helmet shell. This allows for very quick and easy installation without the need for specialty tools or helmet modification. If your helmet does not have these threaded mounting points, please contact us for assistance.
Tools needed for installation:
- 5/32 or 4mm Allen Key (put down your impact gun - either size will fit)
- Hans Anchor Key/Wrench (not included) OR Hans Tether attached to your device
Instructions:
- Taking the complete anchor, thread the anchor onto the terminal on the helmet. Note that threadlocker has been pre-applied to the thread of the anchor. If transferring the anchor to a new helmet, fresh threadlocker is recommended.

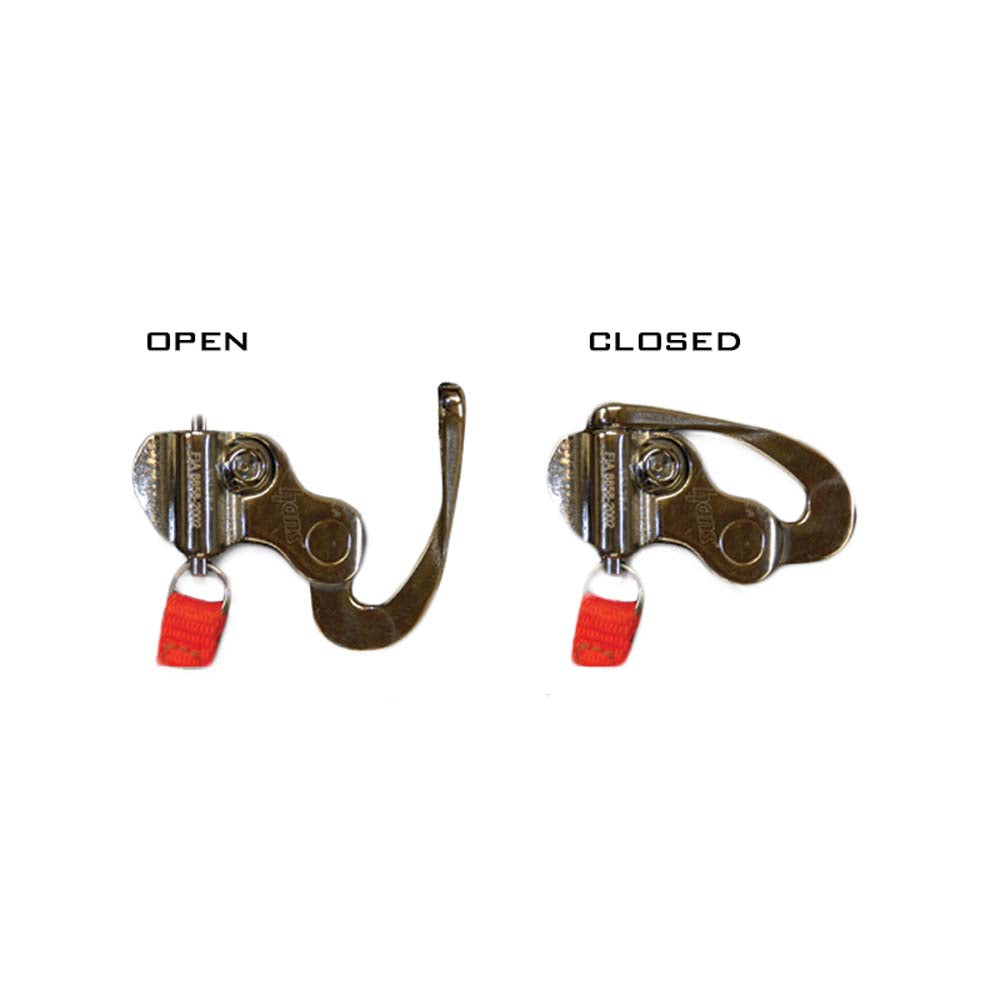

- Hand tighten the screw until snug, making sure that the point on the anchor faces rearward. If installing Quick-Click style anchors, the opening hasp should point rearward. (Click for Sample Image)
- Tighten the screw a ¼ turn past snug. You may need to hold the anchor still while tightening to insure the point on the anchor continues to face rearward. This can be accomplished with the flat edge of a connected tether or using the specialty Hans Anchor Key (or similar flat spanner wrench). Note: Not a lot of force is needed to tighten this screw - if you are having problems keeping the point on the anchor in place, you're probably over tightening! Overtightening can easily break the bonded anchor terminal and/or otherwise damage your helmet!
- Test your installation by connecting the Hans tether to the anchor and make sure it slides on/off with little resistance. If the anchor is installed too tightly, this will feel tight.
- That's it!
