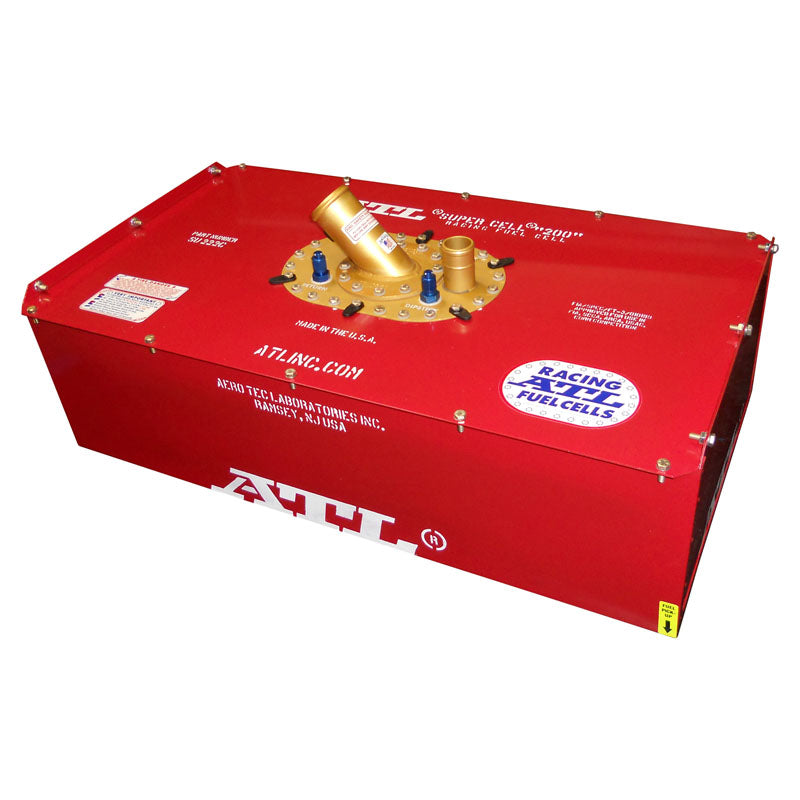

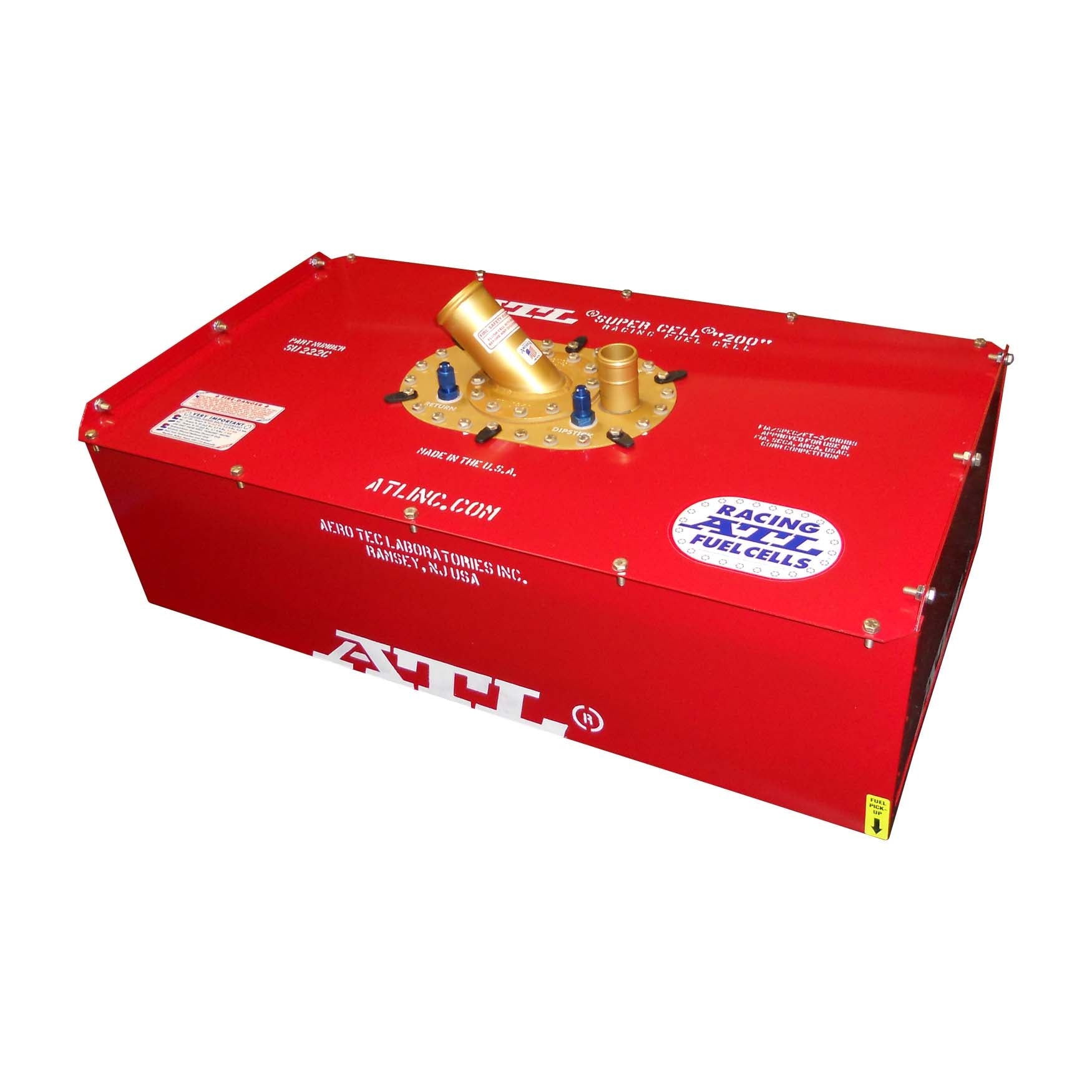

ATL Super Cell 200 - 22 Gallon, Type-C
The ATL Super Cell 200 Fuel Cell offers the toughest nylon reinforced bladder on the market. Type-C Shape measures 34”x17”.5x9.5”. Constructed in either FT3-1999 nylon or FT3.5-1999 Kevlar approved fabrics. Supplied fully foam baffled with an internal collector system containing 3 trap doors and 6" x 10" standard nut ring so that varying top plates can be bolted on to suit your preferred set-up. Approved for use by NASCAR, FIA, SCCA, CORR, SCORE, DIRT, ASA, USRRC, GARRA, N.J.
Note: All ATL Fuel Cells are made-to-order by ATL. Please allow a minimum of 2-3 weeks for delivery. Custom options are available - please call or e-mail for details.
- Extra H-D Rubberized Fabric Bladder, FT-3.5
- Exceeds Anticipated NASCAR Update Specs.
- NASCAR Quick-Fill Flapper-Valve Assy.
- Exceeds Strict ASA & IROC Requirements
- Reinforced With Ballistic Nylon Cloth, Coated In & Out
- Internal 1-1/4" Ball-Type Vent Valve
- Lightweight, Low-Cling Foam Baffling
- Grade 8 Quality Hardware Throughout
- Resistant To All Hydrocarbon Fuels, No Alcohol
- Large 6"x10" Composite Nut-Ring Flange
- Powder Coated 20 Gauge Steel Container (Can)
- One 1/2" Fuel Pickup, "AN" Fitting (#8)
- One 3/8" (#6) Return Fitting
- One 3/8" (#6) Dipstick Fitting
- Internal Fuel Strainers and Water Separators
- One "Duck Foot" Fuel trap
- 5 Year Limited Warranty
